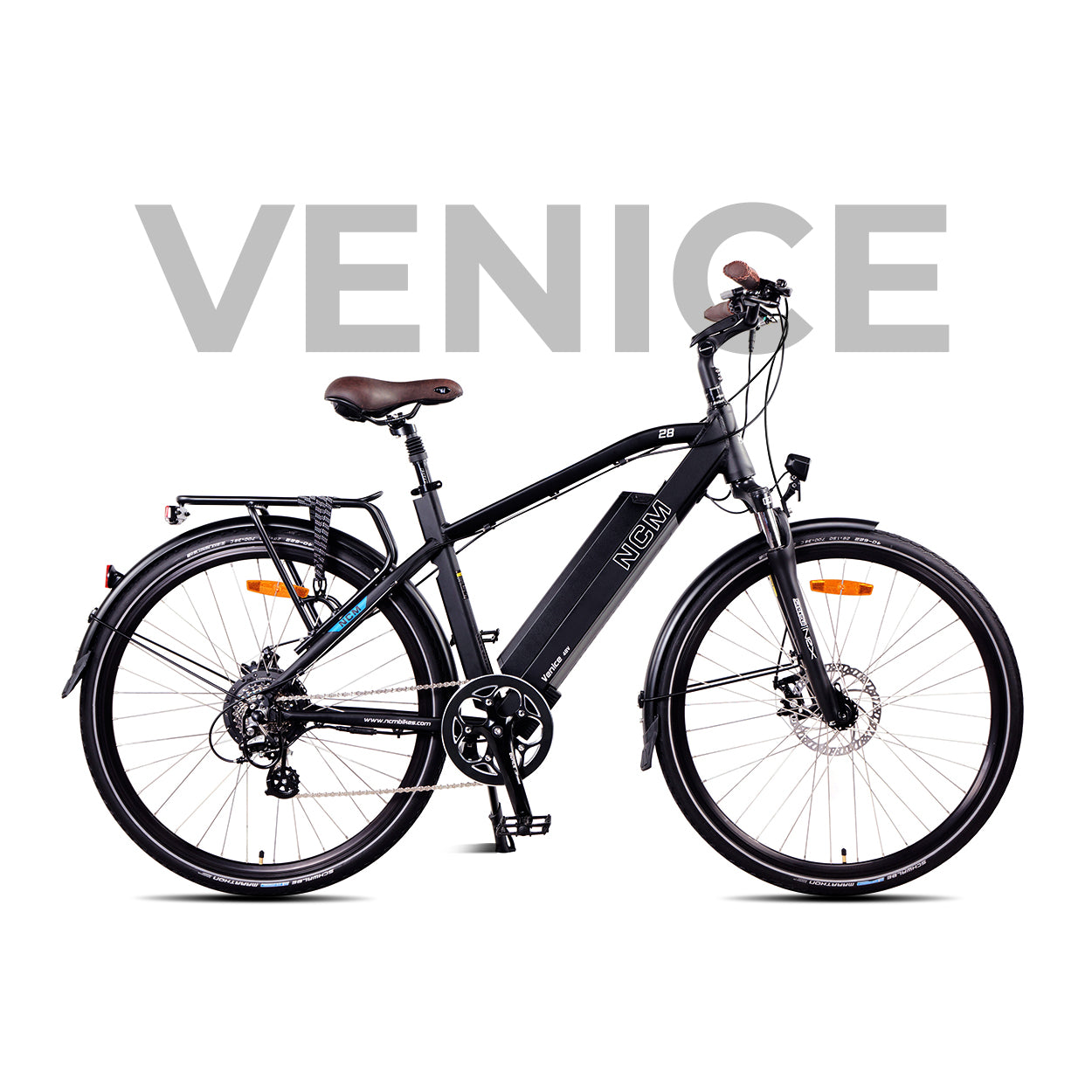

NCM Venice

Price
£1,099

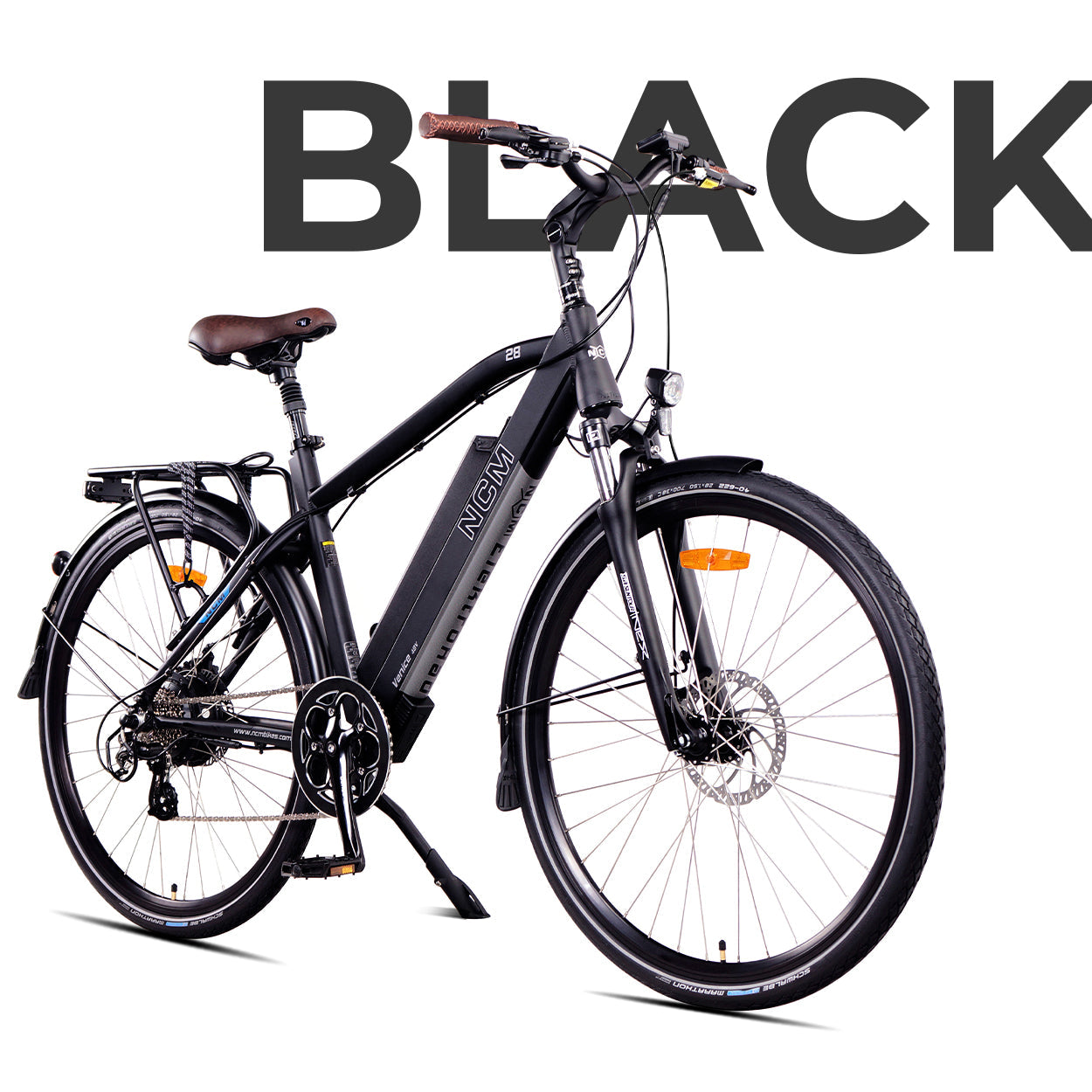

Color:Black
Size:28"
Only 1 left in stock!

One of our best-rated models, the NCM Venice is built for comfort and style, perfect for everyday city riding and trekking. The motor and battery are integrated seamlessly into the aluminium frame design, avoiding a cluttered look while still offering top performance in the pedelec category. Featuring components from top established brands and a quality, responsive frame, this E-bike offers the smoothest experience for even the longest rides. It comes with all the features necessary for a lifestyle bike as well: a large cargo rack with 3-strap bungee for carrying panniers or strapping on any kind of bag; lights in the front and rear to illuminate you and the road; mudguards, a bell, and a kickstand. This E-bike is a jack of all trades.





BIKE COMPONENTS

Frame: Alu. 6061, 28"*480MM

Suspension Fork: Suntour, NEX 28”

Brake: F/R: Tektro Mechanical Disc Brakes, MD-M280

Freewheel: 7 Speed, 14-28T

Tire: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black

Saddle: Selle Royal, Gel Saddle, Brown

Stem: Promax. MA-579

Crank: Prowheel, OUNCE-248AC, 48T

Shifter: Shimano, Altus M310, 7 speed

Derailleur: Shimano, Altus M310, 7 speed

Chain: KMC, Z51





ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4813, 48V 13AH, 624WH

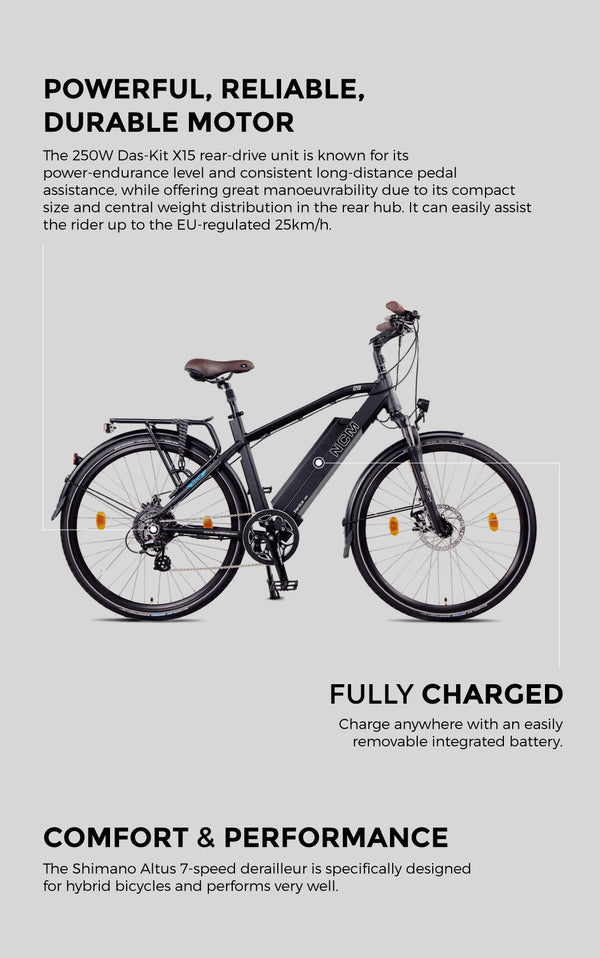

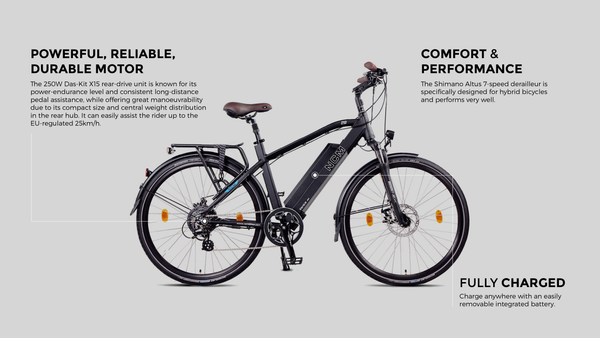

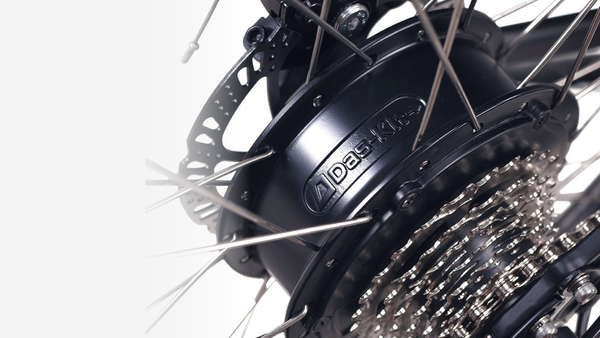

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT5-I5, 48V 18A

Charger: Das-Kit, 48V2A

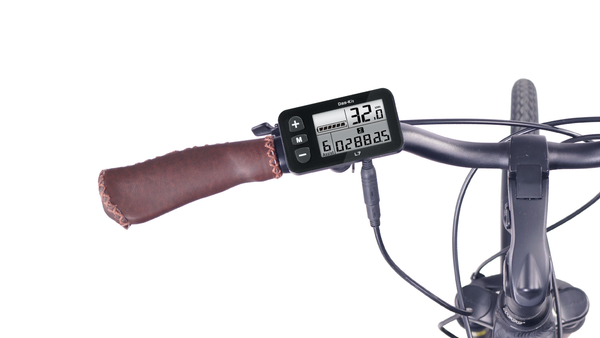

Display: Das-Kit, L7

Front Light: Kendo, 48V, 30 Lux

Rear Light: DR009, AAA*2





WEIGHT

Net Weight (with battery): 27.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg
Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

Highlighted Features

SUPPLIED WITH A HIGH OUTPUT POWER

ergonomic bicycle grips

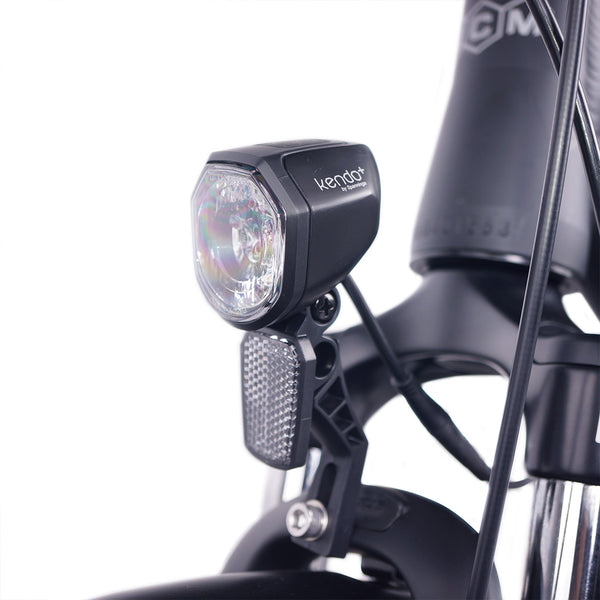

Kendo+ Front Light

Product Specifications

BIKE COMPONENTS

Frame: Alu. 6061, 28"*480MM

Suspension Fork: Suntour, NEX 28”

Brake: F/R: Tektro Mechanical Disc Brakes, MD-M280

Freewheel: 7 Speed, 14-28T

Tire: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black

Saddle: Selle Royal, Gel Saddle, Brown

Stem: Promax. MA-579

Crank: Prowheel, OUNCE-248AC, 48T

Shifter: Shimano, Altus M310, 7 speed

Derailleur: Shimano, Altus M310, 7 speed

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4813, 48V 13AH, 624WH

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT5-I5, 48V 18A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

Front Light: Kendo, 48V, 30 Lux

Rear Light: DR009, AAA*2

WEIGHT

Net Weight (with battery): 27.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg

Warranty
  • NCM provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • NCM provides 2 years warranty on the bike frame. For more warranty information visit our FAQS.
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact NCM on 0390695443.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
