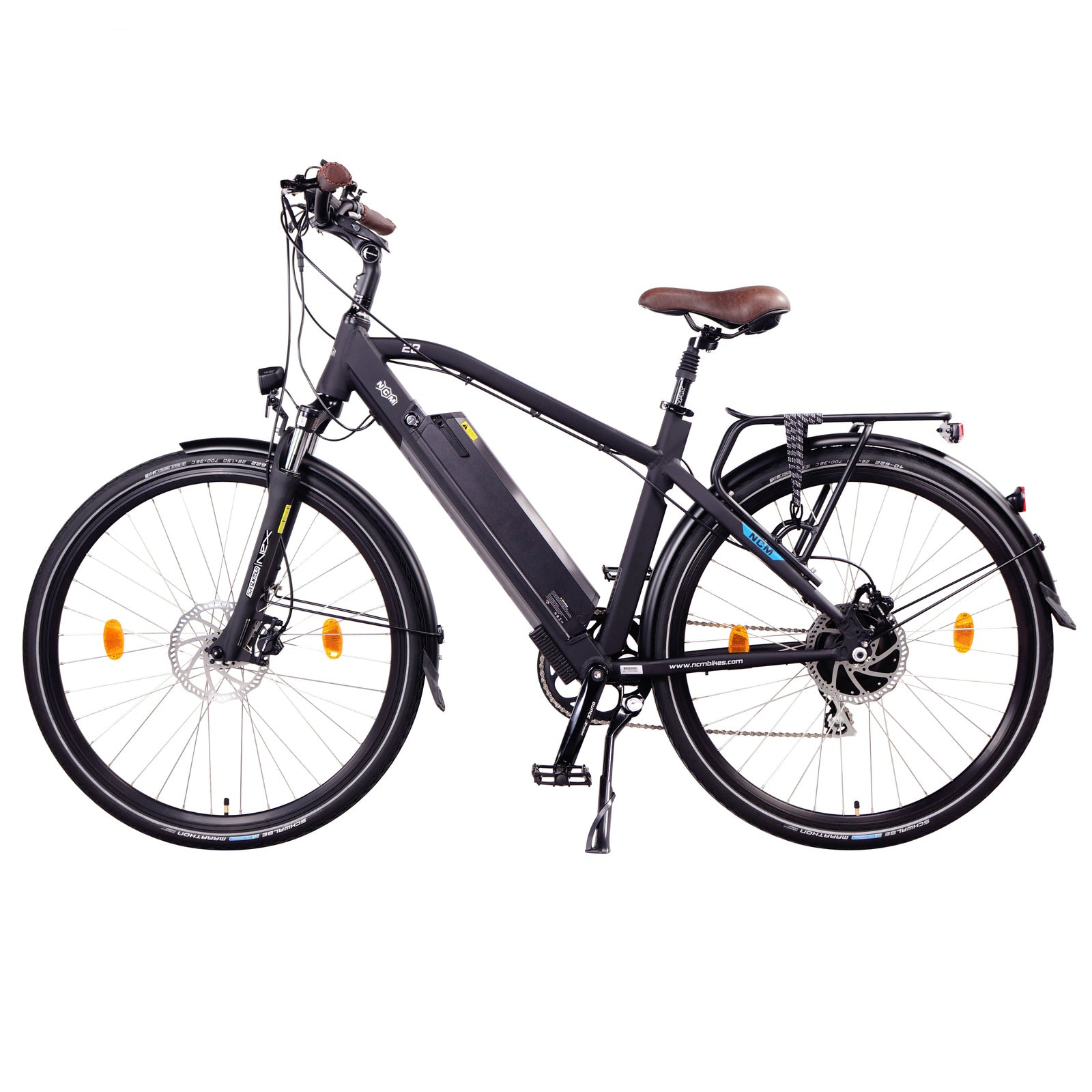

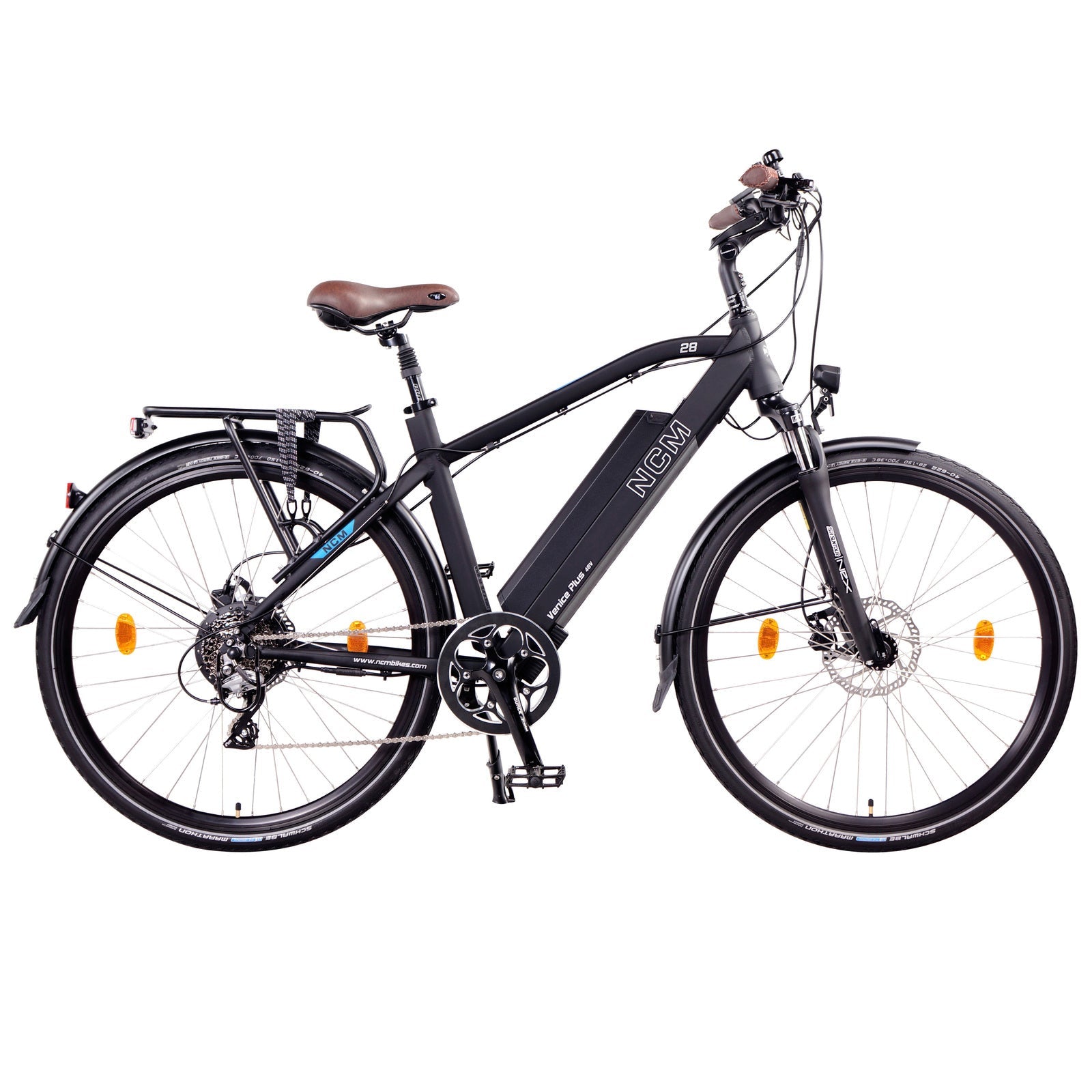

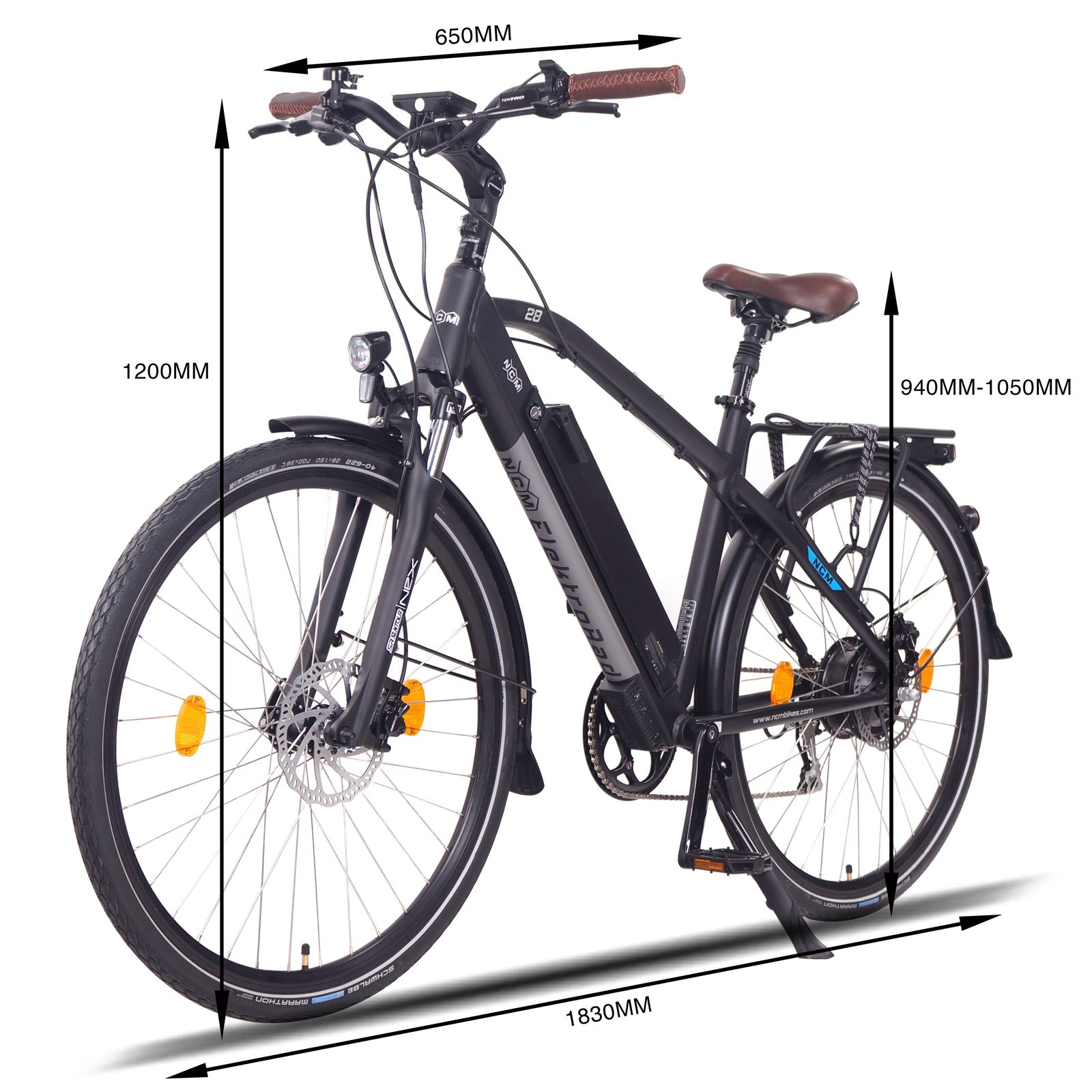

Frame: Alu. 6061, 26"*457MM / Alu. 6061, 28"*480MM

Suspension Fork: Suntour, NEX-HLO

Brake: Hydraulic Disc Brakes

Freewheel: LY, 8 Speed, 11-32T

Tire: Schwalbe, Marathon/Big Ben

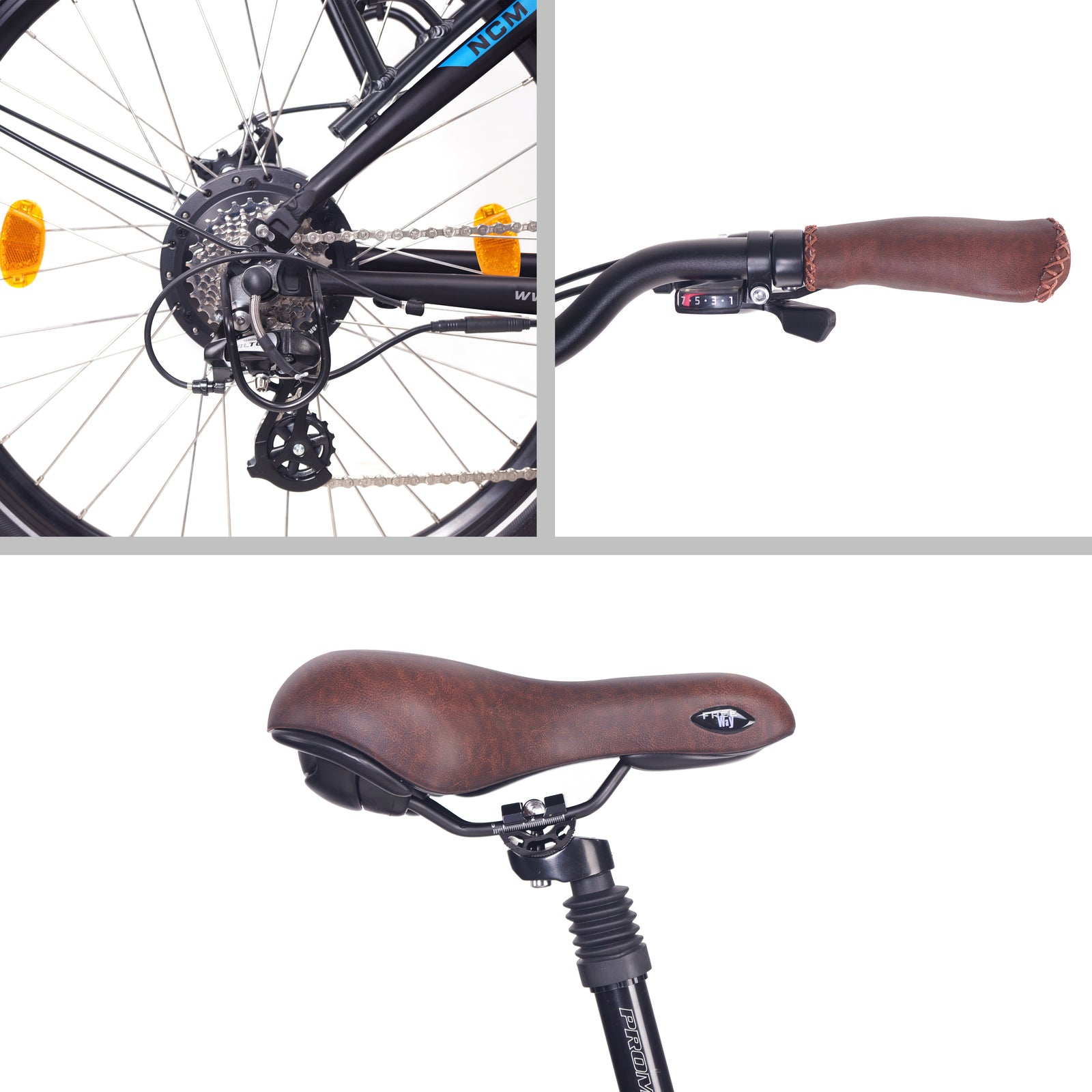

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R: SL-M315-8R, 8 Speed

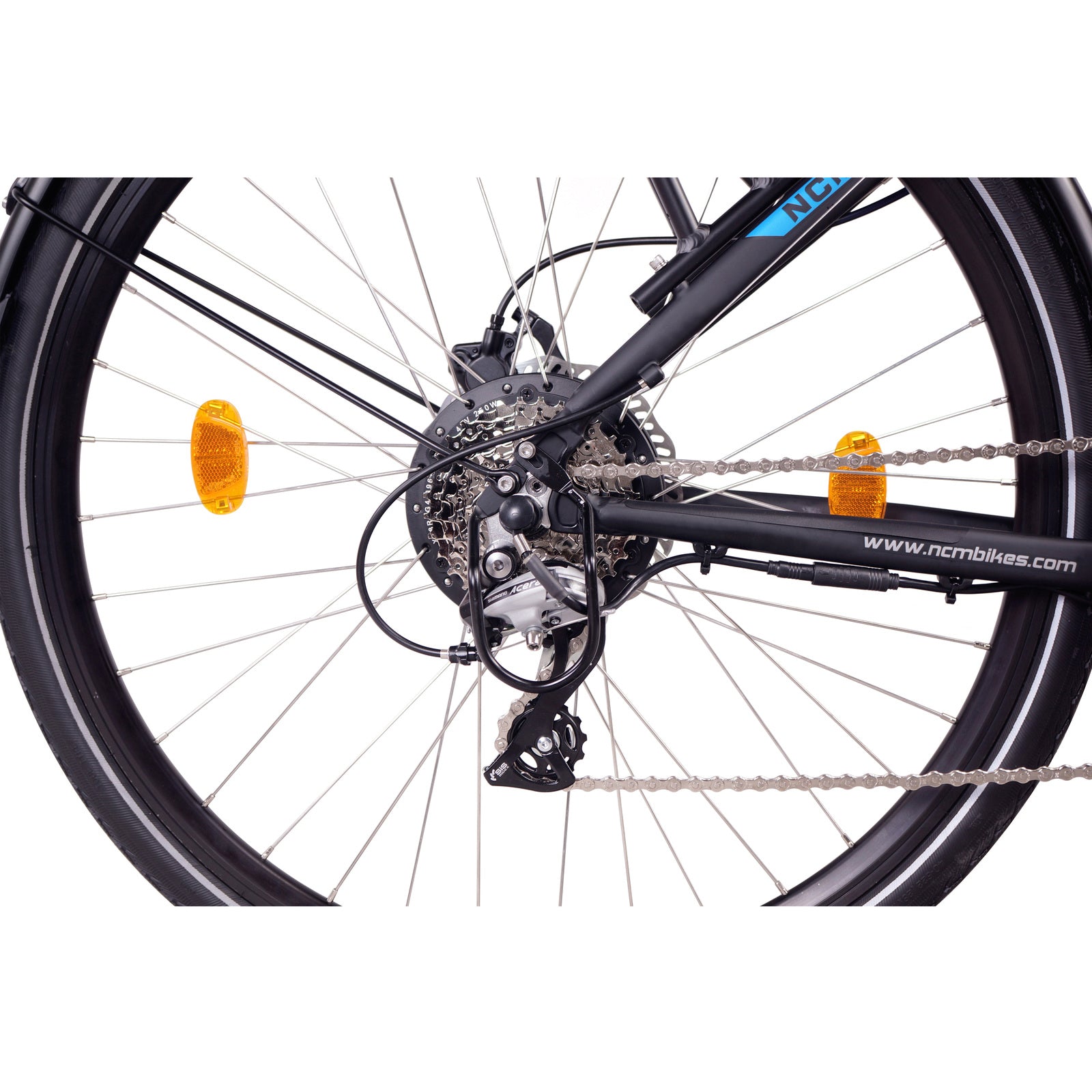

Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z51

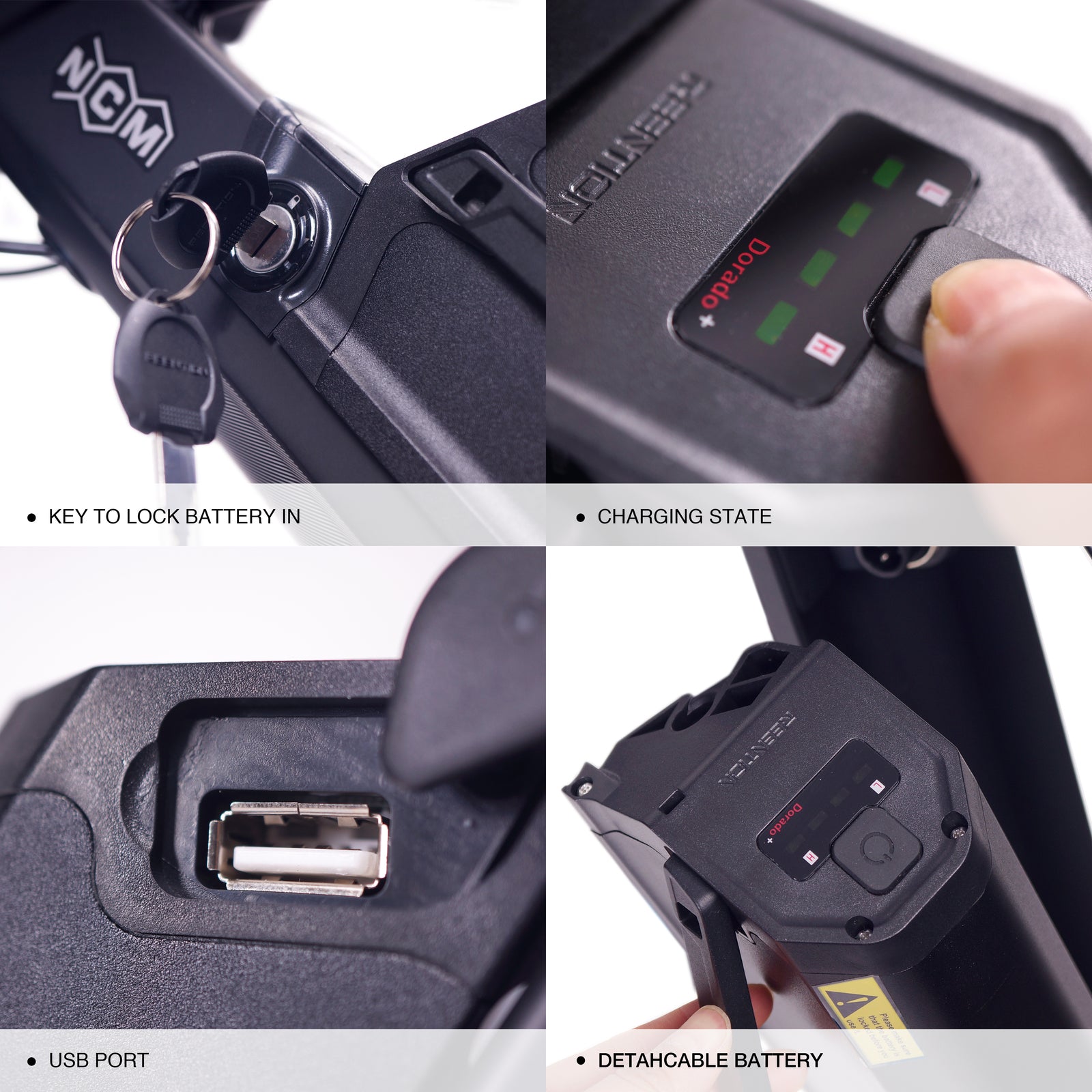

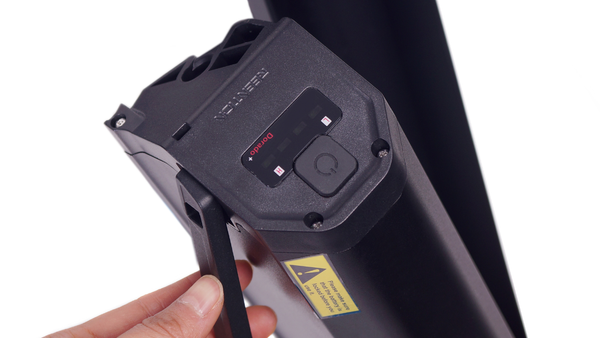

Battery: Das-Kit, i5-4816, 48V 16AH, 768WH, with an USB Port

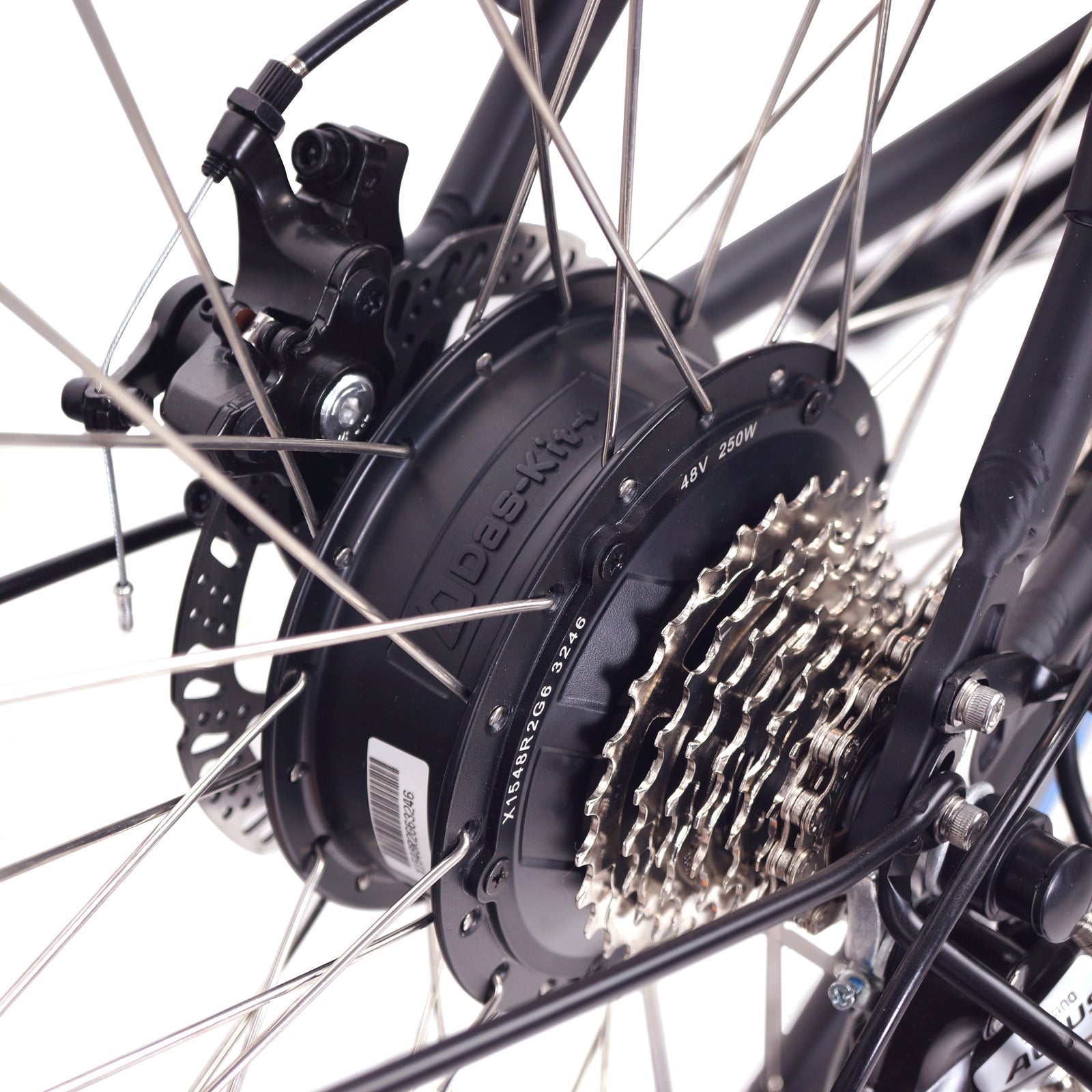

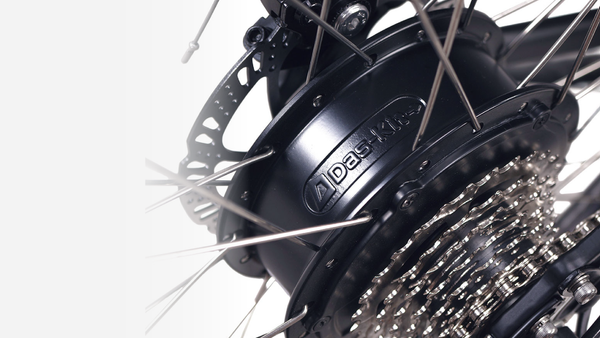

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i5, 48V18A

Charger: Das-Kit, 48V3A

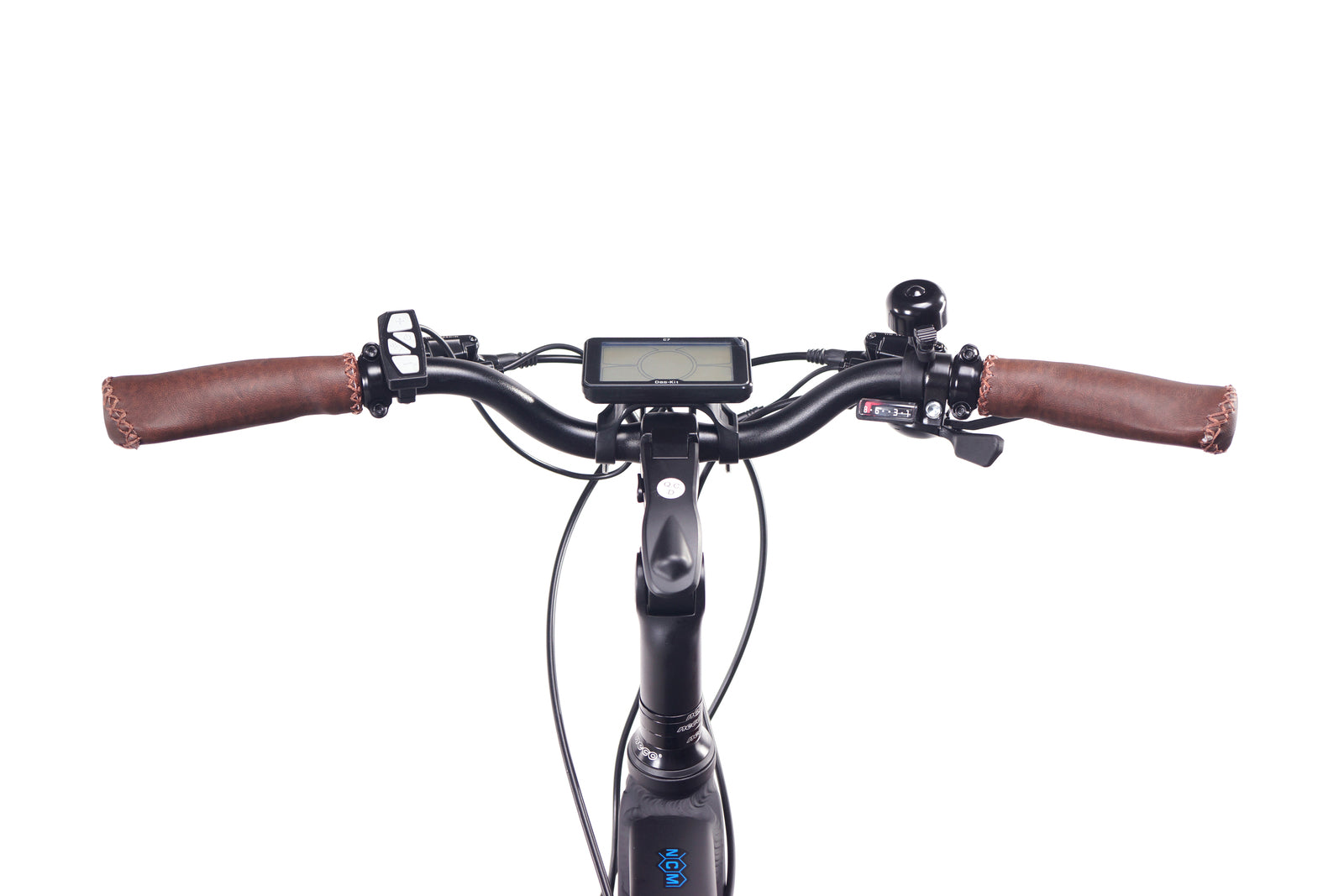

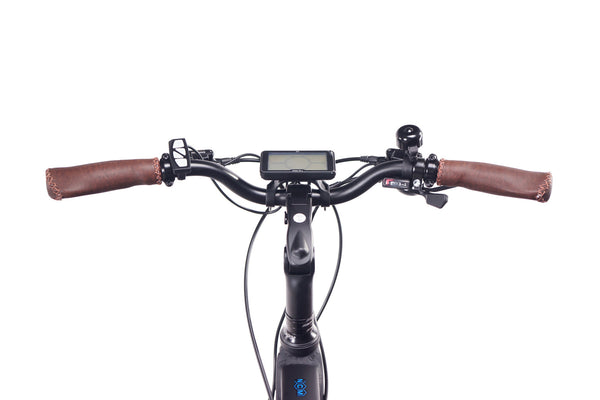

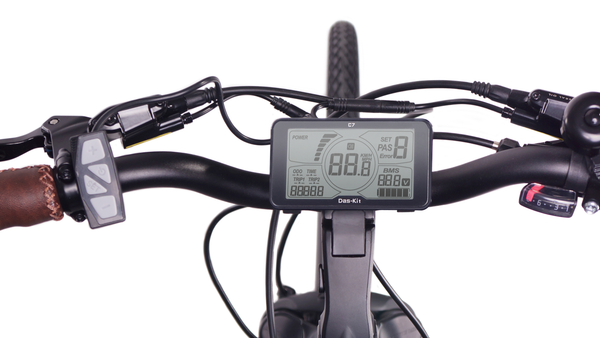

Display: Das-Kit, C7

Front Light: Kendo, 48V, 30 Lux

Rear Light: DR009, AAA*2

Net Weight (with battery): 27.0kg

Battery Weight: 4.1kg

Max Load (driver+bike): 140.0kg

• NCM provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• NCM provides 2 years warranty on the bike frame. For more warranty information visit our FAQS.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact NCM on 0390695443.
• Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
